COMPREHENSIVE FAN CONTROLS TUF GAMING B450M-PLUS II features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS.
32Gbps M.2 Support
M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.
USB 3.2 GEN 2 TYPE-A
Numerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A connector with fast USB 3.2 Gen 2 connectivity for compatible cases.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
SafeSlot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
DRAM overvoltage protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

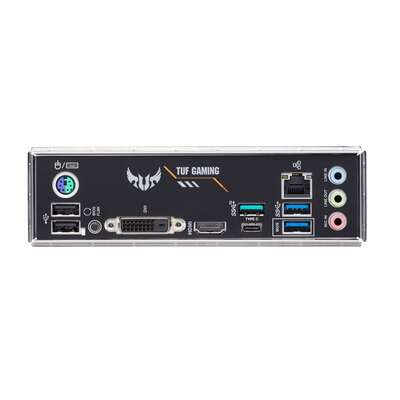

Stainless-steel back I/O panel
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
IMMERSIVE GAMING
TUF GAMING B450M-PLUS II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
AI NOISE-CANCELING MICROPHONE
AI Noise-Canceling Microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.
DTS® Custom for gaming headsets
Hone your battle skills with exclusive DTS® Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
OUTSHINE THE COMPETITION
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strip connected to the onboard RGB header. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Материнские платы серии TUF Gaming предназначены для работы в сложных условиях и поэтому подвергаются строгим тестам, подтверждающим их высокое качество. Отборная элементная база, усовершенствованная система питания и совместимость с различными системами охлаждения – эта материнская плата предоставляет все для того, чтобы получить гарантированную стабильность и максимальную производительность в играх. При построении ПК с использованием материнской платы серии TUF Gaming вы также получаете преимущества альянса TUF Gaming Alliance, в рамках которого компания ASUS сотрудничает с надежными отраслевыми партнерами с целью обеспечить легкость сборки, гарантированную совместимость компонентов и дополнительную эстетику готового решения.
| По направлению | для дома/офиса |
| Форм-фактор | mATX |
| Тип подключения | AM4 |
| Северный мост (чипсет) | AMD B450 |
| UEFI BIOS |  |
| Максимальный объем памяти | 128 ГБ |
| Звук | 7.1 |
| Поддержка программного RAID | (0, 1, 10) |
| SATA 3 (6Гбит/с) | 6 порта(ов) |
| LAN (RJ-45) | 1 Гбит/с |
| USB 2.0 | 6 шт (на задній панелі: 2 x Type-A; на передній панелі: 4 x Type-A) |
| PS/2 | 1 шт (комбо порт) |
| Основной разъем питания | 24+8 -pin |
| Размеры (ВхШ) | 244x244 мм |
