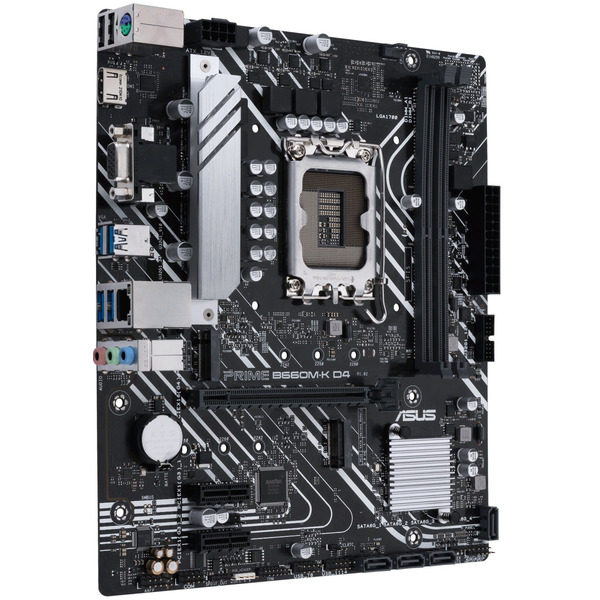

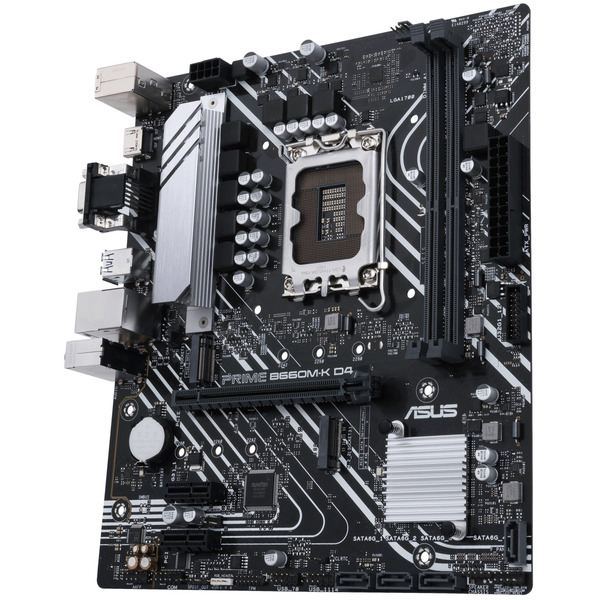

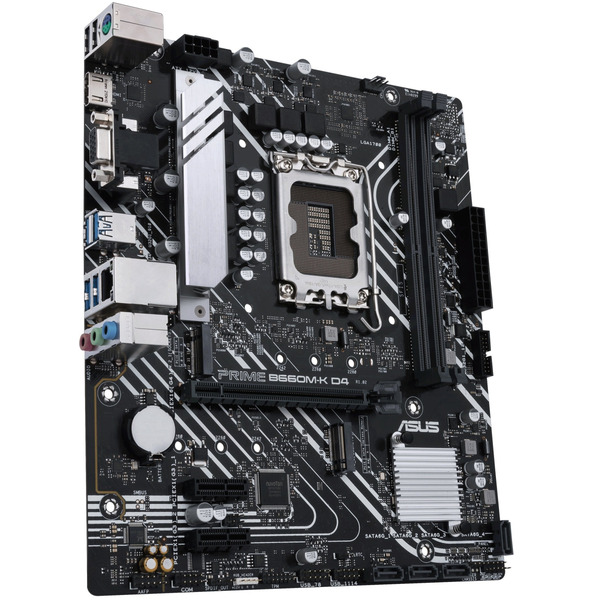

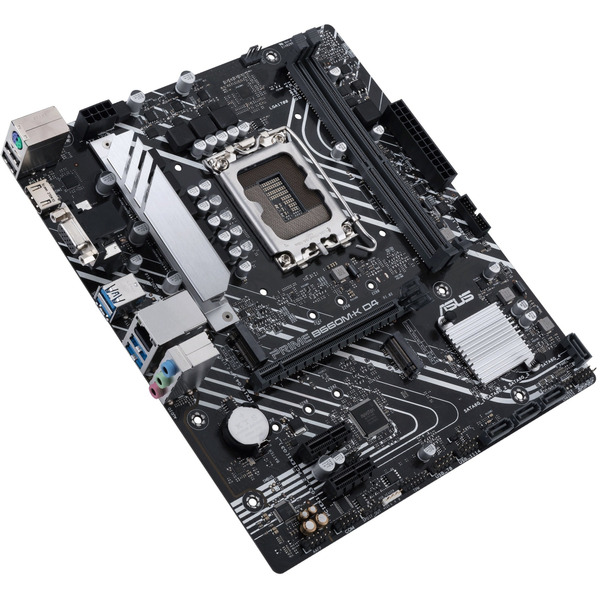

ASUS Материнcкая плата PRIME B660M-K D4 s1700 B660 2xDDR4 M.2 HDMI D-Sub mATX

ASUS Fan Xpert software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

COOLING

Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime B660 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan

The chassis fan header supports auto-detection of PWM or DC fans.

PERFORMANCE

Prime B660 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

DDR4 5333(OC)

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Two M.2 slots (up to 64 Gbps)

Prime B660M-K D4 offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
Материнские платы ASUS Prime разработаны для раскрытия максимальных возможностей новейших процессоров Intel 12-го поколения. Модель Prime B660M-K D4 сочетает в себе мощную систему питания, эффективное охлаждение и интеллектуальные функции настройки параметров с помощью интуитивного программного обеспечения и эксклюзивных функций BIOS.

По направлению	для дома/офиса
Форм-фактор	micro-ATX
Тип подключения	LGA1700
Процессорная совместимость	Intel Core 12th Generation
UEFI BIOS
Максимальный объем памяти	64 ГБ
Звук	7.1
SATA 3 (6Гбит/с)	4 порта(ов)
LAN (RJ-45)	1 Гбит/с
USB 2.0	4 шт (2 задні; 2 передні з підтримкою 4 додаткових USB 2.0 портів)
PS/2	1 шт (клавіатура/миша)
Основной разъем питания	24+8 -pin
Размеры (ВхШ)	244x211 мм
